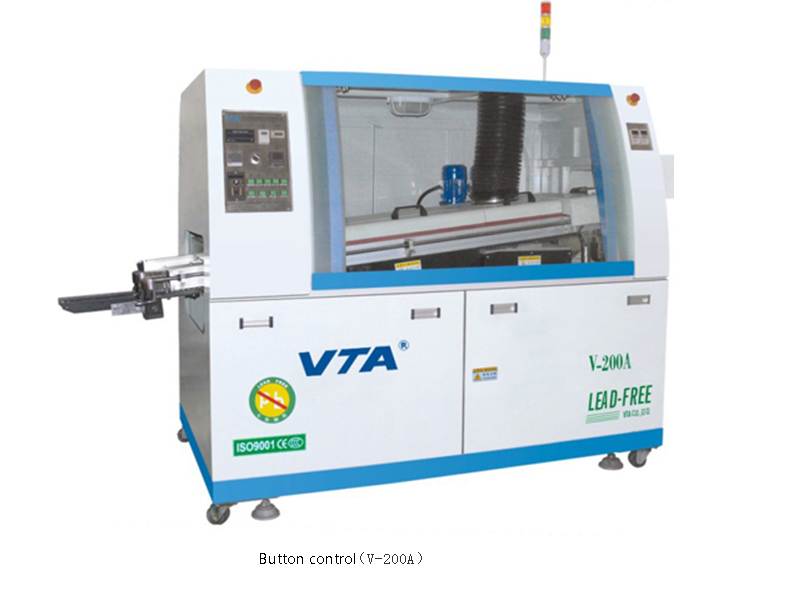

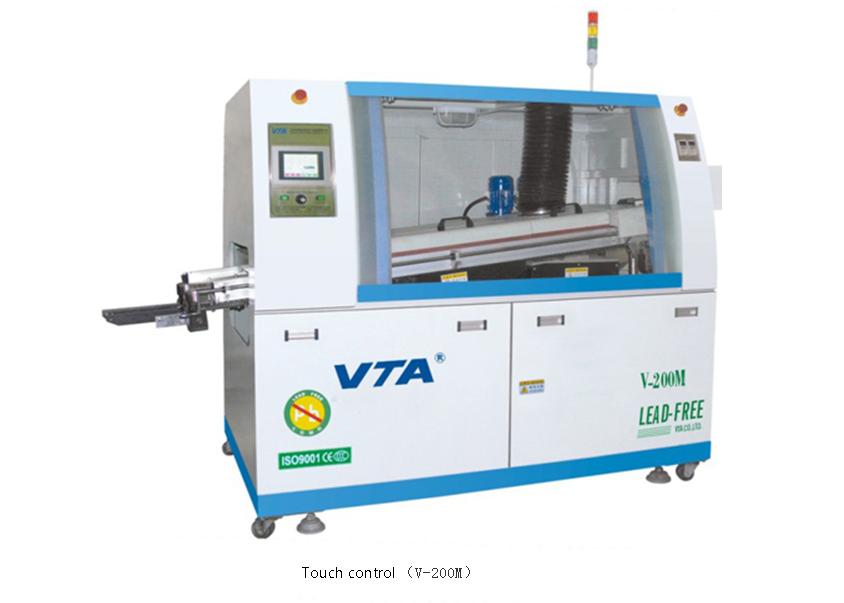

  • Small 200 series lead-free wave soldering (computer / touch / button)

Small 200 series lead-free wave soldering (computer / touch / button)

Category:Wave soldering series

Profile:Features: ? The whole machine is designed for lead-free process. ? Japanese Mitsubishi PLC control. ? Synchronized into the board mechanism, imported transport power drive, stable transportation. ? Small structure design, suitable for small batch production and laboratory use, streamlined design, flexible use, easy to clean and maintain. ? Preheating uses high-efficiency far-infrared ceramic tube heating, which has good thermal compensation performance and high stability. ? Low oxidation and anti-corrosion lead-free tin furnace, energy-saving nozzle design meets the requirements of lead-free soldering. ? The tin furnace uses an external hot cast iron heating plate, which is safe and efficient. ? With sound and light alarm and emergency braking device.

Contact Number:400-0755-098

Immediate procurementOnline consultation

  • Product introduction

SPECIFICATIONS

Model
V-300C computer
V-300Mtouch
V-300Abutton
Control method
computer+PLC
Computer+PLC
touch+PLC
Touchscreen+PLC
button+PLC
Keys+PLC
Conveyor motor
1P AC220V 60W
Conveyor speed
300-900mm/min
Conveyor speed
50-200mm(w)
PID Contorl)Temperature
power:4KW  length:600mmOne section PID control
temperature:(Room temperature-250℃)
Transport height
750 ± 20mm
Preheating Zone Power
10KW (Cast iron heating plate)(Room temperature-300℃)
Solder temperature
200KG
Wave height
Solder pot wam-up time
0-12mm
Power supply
3P AC220V 0.18KW×1pcs/2pcs
Finger cleaning pump
1P AC220V 6W
Cooling system
Ordinary air cooling
Cooling system
L→R(R→L)
Flux method
Foaming/spray
Air pressure of flux
3-5BAR
Conveyor angle
4-6°
Power supply
3P AC380V 50HZ 63A
Normal/starting power
15.0KW/3.5KW
Dimension
1800(L)×1100(W)×1650mm(H)
Appearance size
2460(L)×1100(W)×1650mm(H)
Net weight
650KG




234234

Order:Small 200 series lead-free wave soldering (computer / touch / button)
